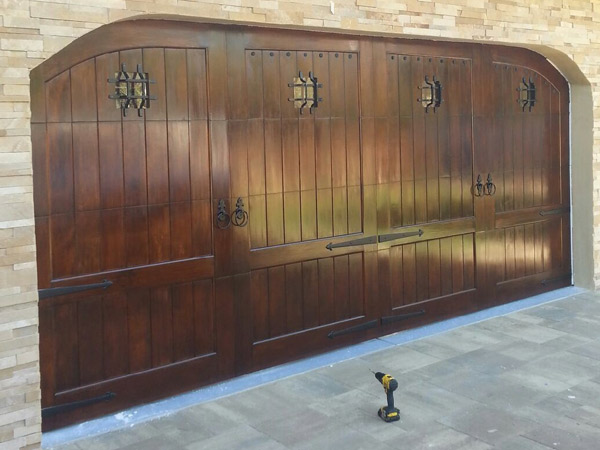

Spanish Style Custom Wood Garage Door


Custom Wood

The Pena Adriano Spanish Style Wood Doors Collection incorporates handcrafted wood to enhance its classic appearance combining the look and style of sectional doors with the appearance of carriage house styled wood doors. These modern doors offer prominent features like vertical grain lumber. All sections are reinforced with heavy duty struts which give the section extra strength and durability to last for years.

Wood Options

Wood Options

Wood Types

  • Paint Grade: 5/8" MDO Plywood Base & Overlay
  • Western Red Cedar: Solid Cedar Wood Base & Overlay
  • Mahogany: Marine Mahogany Engineered Wood Base & Solid Wood Mahogany Overlay
Product Details

Product Details

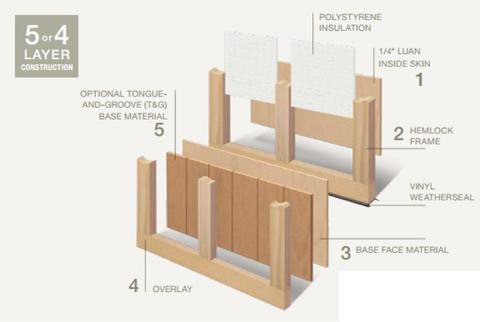

  • Handcrafted construction 4-5 Layers (2-3/4" Thick)
  • Optional decorative hardware
  • Wood Species: Paint Grade, Western Red Cedar or Mahogany
  • Wood Type: Paint-grade or Stain-grade
  • Wood Color: Unfinished
  • Glass Type: Single Pane Clear (1/8" Thick)
  • Custom Capabilities: Size, Glass
  • Warranty: All Lux Custom Wood Garage Door Series including their hardware are warranted for 1-year.
  • Energy-efficient insulation which is applied using Polystyrene Insulation in the back of the wood panel
  • Packaging: Loose
Track and Hardware Details
Track and Hardware Details
  • Spring Type: Torsion, Oil Spring
  • Track Size: 2" Flag & Jamb Bracket Jambs
  • Track Mount: Bracket
  • Track Lift: Standard (High Lift or Low-Lift available)
  • Track Radius: 12" or 15"
  • Packaging: Loose
  • Rollers: Heavy-duty steel ball bearing rollers with nylon tires provide quiet operation
  • No lock hole
